Ball valves manufacturer , supplier , dealer Pune , Maharashtra , India .

-

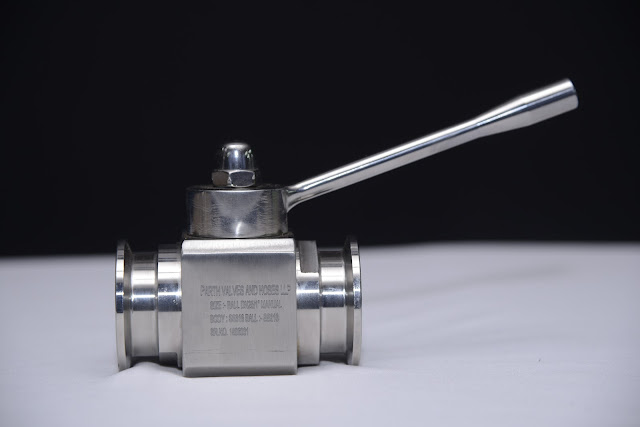

Ball Valves



PARTH VALVES AND HOSES LLP is pleased to offer top-of-the-line products in pipeline flow control. The PARTH VALVE AND HOSES' Ball Valves have been developed with extensive application, design and manufacturing expertise. These products are produced by employing modern manufacturing practises under a robust quality assurance system. These practices ensure consistent product quality and dependable performance. The PARTH VALVE AND HOSES' Ball Valves have been designed to include state-of-the-art features that are described in this bulletin.


TECHNICAL DATA
  • PARTH VALVES AND HOSES has extensive experience in manufacturing floating ball valve as well as Trunnion Mounted Ball Valves, Full bore ball valve, Reduced bore ball valve, both Soft and Metal Seated.
  • Size: 1/2” up to 12“(DN 15 up to DN 300)
  • Pressure Rating: ASME 150# to 300#
  • Materials: Carbon Steel, Stainless Steel (SS304, SS316, SS316L) Duplex Stainless Steel, Super Duplex Stainless Steel, Alloys.
  • Design Standard: design generally conforms to ASME B 16.34-2004 / API6D / BSEN ISO 17292 (BS5351); DIN EN 12516 Also, IS9890-1981
  • Temperature Rating: -10 degree to 230 degree.
  • Test (Inspection) Standard: IS 6157-1981, BS 6755 Part 1/API 598
  • Construction Details: Single / Two / Three Piece Design / Side Entry / Trunnion / Full Bore/Reduced bore/ Block & Bleed / Soft and Metal Seated
  • End Connection: Screwed, Socket Weld, Flanged, Butt-Weld, Triclover End, SMS/DIN union End.
  • Operator / Actuator: Lever, Gear, Actuator (Pneumatic, and Electric Motorized)
  • Special Service almost all PARTH VALVES AND HOSES can designs in a special version as per customer’s requirements. In this case, all the material details and technical features are given by the Customer & all Design aspects of us.

                                                                                                                        Read More






                           http://www.parthenterprises.net/ball-valves.html

SALIENT FEATURES
  • Blow-Out Proof Stem
  • Mirror Finish Floating Ball
  • Compact Design
  • Low torque, Less Wear
  • Quarter Turn Shut Off
  • Wide Variety Of End Connections
  • No Lubrication Required
  • Lever Position Indicates Port Direction
  • Each Valve Individually Tested
  • Guaranteed Performance
APPLICATIONS

  • Food Industry
  • Dairy Industry
  • Brewery Industry
  • Pharmaceutical Industry
  • Chemical Industry
We are Manufacturer, Supplier, Exporter, Authorized Dealer & Solution Provider. Our setup is situated in Pune, Maharashtra, India & majorly we serve our customers from countries like Shri Lanka, Bhutan, Bangladesh, Malaysia, Indonesian, Nepal, Europe, Africa, Gulf countries like the UAE, Dubai, Bahrain, Oman, Qatar, Saudi Arabia, Egypt, Jordan, Lebanon, Syria, Yemen, Kuwait etc.



                                                     Contact Us

                                        Parth Valves And Hoses LLP

J Block, Plot No-209, MIDC Bhosari, Near Shivanjali Hotel Pune-411026, Maharashtra, India.

Mobile No. : + 91 - 98812 36139, 77220 76899/

 Email Id :- pramod@parth-valves.com ; marketing@parth-valves.com ; sales3@parth-valves.com
